TriContinent Prime Series Syringes can be summarized in two words: quality and customization. For over four decades, we have been producing syringes of the finest quality, specially designed for use with syringe pumps. Each of our Prime Series Syringes is made from premium borosilicate glass, and has precision bore diameters of +/- 0.0002". Our syringe seal materials include high-quality PTFE, UHMWPE, or custom UHMWPE blends. Whether your reagents are simple aqueous solutions, or extremely crystalline and abrasive, we offer the ideal seal solution to suit your application.

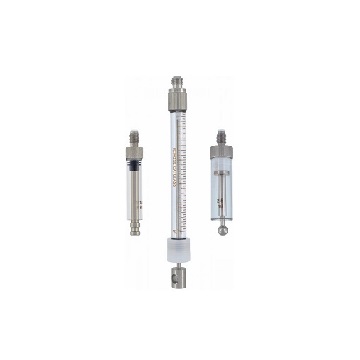

Prime Replacement Syringes, 3 cm and 6 cm
Our Prime Replacement Syringes are compatible with TriContinent C-Series syringe pumps, as well as other industry standard 3 cm and 6 cm stroke syringe pumps.
Features & Benefits:
AccuPump 2 and BasePump syringes are designed specifically for these OEM pumps to ensure long life and optimum performance.
MODEL | 3cm Syringes | Syringes |
(fits TriContinent C-Series Pumps Tecan's Cavro XP3000 and XCalibur) | (fits TriContinent BasePump models) | |
AVAILABLE VOLUMES | 50 μL, 100 μL, 250 μL, 500 μL, 1 mL, 2.5 mL, 5 mL, 12.5 mL* (additional volumes upon request) | 50 μL, 250 μL, 500 μL, 2 mL, 5 mL, 10 mL (additional volumes upon request) |
FITTING INTERFACE | 1/4' - 28 | Diluent Syringe - Luer Fittings |
Single Port Syringe - 1/4 - 28 Female Port | ||
Dual Port Syringe - Male Luer Fittings | ||
STROKE LENGTH | 3 cm | |
FLUID CONTACT MATERIALS | UHMWPE Seal, Borosilicate Glass | PTFE seal, Borosilicate Glass, Polypropylene |
PTFE seal, Borosilicate Glass |
* Compatible only with the TriContinent C3000 Model # 8657-15 and C24000 Model # 8657-11.
Catalog # | Description |
10470 | 50 μL UHMWPE |
10471 | 100 μL UHMWPE |
10472 | 250 μL UHMWPE |
10473 | 500 μL UHMWPE |
10474 | 1 mL UHMWPE |
10475 | 2.5 mL UHMWPE |
10476 | 5 mL UHMWPE |
10480 | 50 μL PTFE |
10481 | 100 μL PTFE |
10482 | 250 μL PTFE |
10483 | 500 μL PTFE |
10484 | 1 mL PTFE |
10485 | 2.5 mL PTFE |
10486 | 5 mL PTFE |
10488* | 12.5 mL PTFE |
* Compatible only with the TriContinent C3000 Model # 8657-15 and C24000 Model # 8657-11
Catalog # | Description |
10480 | 50 μL PTFE |
10481 | 100 μL PTFE |
10482 | 250 μL PTFE |
10483 | 500 μL PTFE |
10484 | 1 mL PTFE |
10485 | 2.5 mL PTFE |
10486 | 5 mL PTFE |
* Long-life UHMWPE seals available upon request
Catalog # | Description | |
905 | 50 μL PTFE Dual Port Sample | |
904 | 250 μL PTFE Dual Port Sample | |
903 | 500 μL PTFE Diluent | |
902 | 2 mL PTFE Diluent | |
901 | 5 mL PTFE Diluent | |
900 | 10 mL PTFE Diluent | |
893 | 250 μL PTFE Single Port Sample | |
894 | 500 μL PTFE Single Port Sample | |
890 | 2 mL PTFE Single Port Sample | |
895 | 5 mL PTFE Single Port Sample | |
896 | 10 mL PTFE Single Port Sample |
